Ceratizit
7.050954E9

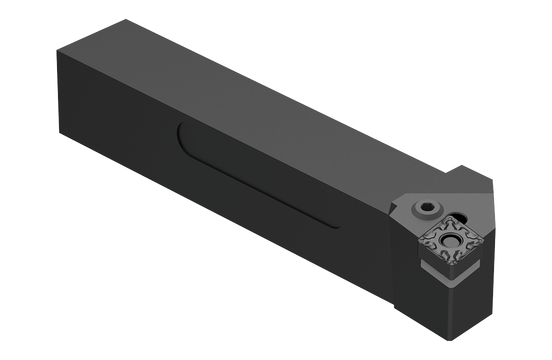

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PCLNL |
| Overall Length (Inch) | 9.85 |
| Short Description | PCLNL 4040 S19-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PCLNL 4040 S19-T |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1.58 Inch |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Metric) | 40.0 |
| Shank Height (Metric) | 40.0 |
| Functional Width (Decimal) | 1.97 |
| Functional Width (Metric) | 50.0 |
| Head Length (Decimal) | 1.5 |
| Head Length (Metric) | 38.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.6 |
| End Chamfer Distance (Metric) | 15.2 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 40.0 |
| Functional Height (Decimal) | 1.58 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 46.0 |
| Overall Height (Decimal) | 1.82 |
| Tightening Torque (Nm) | 8.0 |
| Holder Form | PCLN95 |
