Ceratizit
7.050944E7

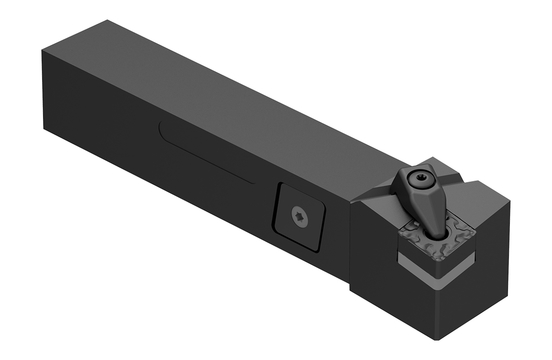

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DCLNL |
| Overall Length (Inch) | 9.85 |
| Short Description | DCLNL 4040 S25 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DCLNL 4040 S25 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 40 mm |
| Shank Height | 40 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 1.58 |
| Functional Width (Decimal) | 1.97 |
| Functional Width (Metric) | 50.0 |
| Head Length (Decimal) | 2.37 |
| Head Length (Metric) | 60.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 40.0 |
| Functional Height (Decimal) | 1.58 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 49.38 |
| Overall Height (Decimal) | 1.95 |
| Tightening Torque (Nm) | 6,5 |
| Holder Form | DCLN95 |
