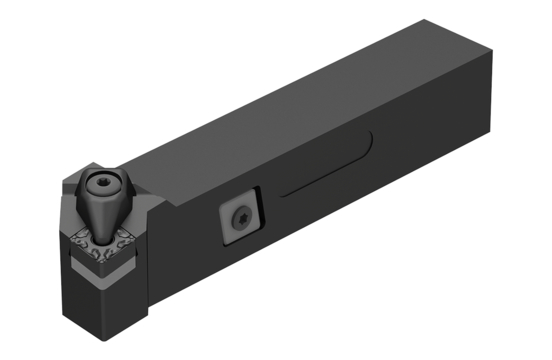

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DCLNR |
| Overall Length (Inch) | 3.94 |
| Short Description | DCLNR 1616 H09 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DCLNR 1616 H09 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.63 |
| Functional Width (Decimal) | 0.79 |
| Functional Width (Metric) | 20.0 |
| Head Length (Decimal) | 0.91 |
| Head Length (Metric) | 23.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.28 |
| End Chamfer Distance (Metric) | 7.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16.0 |
| Functional Height (Decimal) | 0.63 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 19.09 |
| Overall Height (Decimal) | 0.76 |
| Tightening Torque (Nm) | 2.0 |
| Holder Form | DCLN95 |
