Ceratizit
7.0501032E7

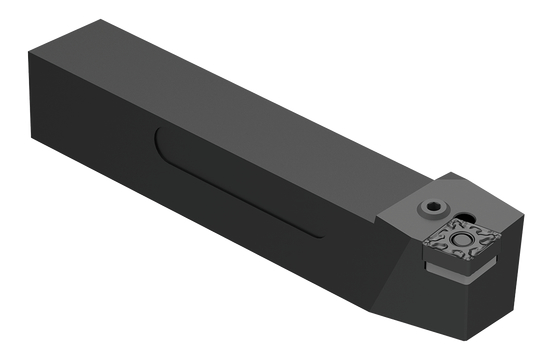

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170.0 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PCBNL |
| Overall Length (Inch) | 6.7 |
| Short Description | PCBNL 3232 P19-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PCBNL 3232 P19-T |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Shank Height | 32 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Width (Decimal) | 1.26 |
| Functional Width (Decimal) | 1.07 |
| Functional Width (Metric) | 27.0 |
| Head Length (Decimal) | 1.5 |
| Head Length (Metric) | 38.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32.0 |
| Functional Height (Decimal) | 1.26 |
| Inclination Angle | 7 degrees |
| Overall Height (Metric) | 38.0 |
| Overall Height (Decimal) | 1.5 |
| Tightening Torque (Nm) | 8.0 |
| Holder Form | PCBN75 |
