Ceratizit
7.0280618E7

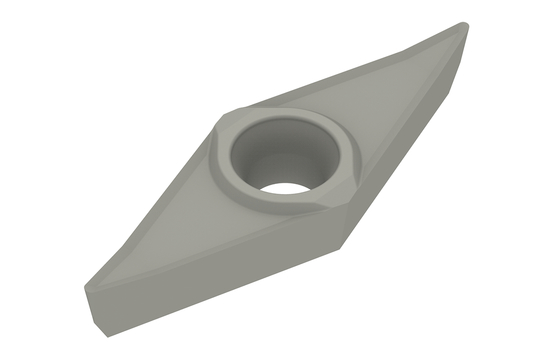

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 5.56 |
|---|---|
| Corner Radius (Metric) | 3.0 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.12 |
| Style | VCGT |
| Thickness (Inch) | 0.22 |
| Short Description | VCGT 220530FN-27 H10T |
| Long Description | CARBIDE TURNING INSERT VCGT 220530FN-27 H10T |
| Grade | H10T |
| Unit Of Measure | Metric |
| Cutting Edge Length | 22.10 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.87 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -27.0 |
| Screw Hole Diameter (Decimal) | 0.22 |
| Screw Hole Diameter (Metric) | 5.5 |
| Tolerance Class | G |
