Ceratizit
7.0277902E7

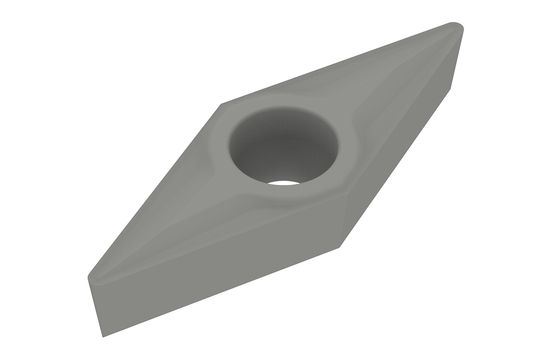

CERMET TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | CERMET |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | VCGT |
| Thickness (Inch) | 0.19 |
| Short Description | VCGT 160408EN-SF TCM10 |
| Long Description | CERMET TURNING INSERT VCGT 160408EN-SF TCM10 |
| Grade | TCM10 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.66 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -SF |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Rake Angle | 15 degrees |
| Tolerance Class | G |
