Ceratizit
7.02706E7

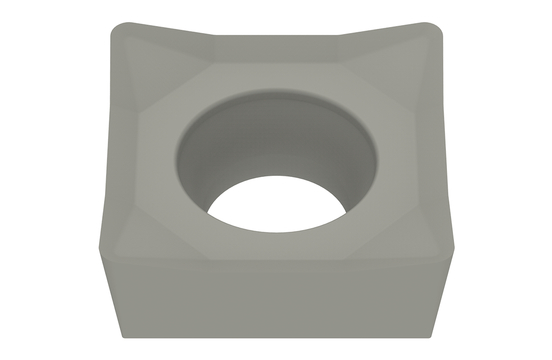

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | SCGT |
| Thickness (Inch) | 0.16 |
| Short Description | SCGT 09T304FN-27 H10T |
| Long Description | CARBIDE TURNING INSERT SCGT 09T304FN-27 H10T |
| Grade | H10T |
| Unit Of Measure | Metric |
| Cutting Edge Length | 9.52 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.38 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -27.0 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Tolerance Class | G |
