Ceratizit
7.026802E7

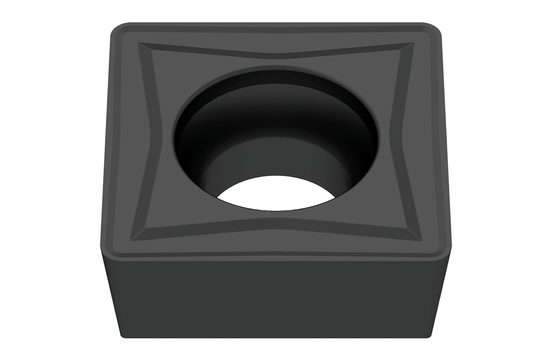

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | SCMT |
| Thickness (Inch) | 0.19 |
| Short Description | SCMT 120412EN-SM CTCK110 |
| Long Description | CARBIDE TURNING INSERT SCMT 120412EN-SM CTCK110 |
| Grade | CTCK110 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.70 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.5 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -SM |
| Screw Hole Diameter (Decimal) | 0.22 |
| Screw Hole Diameter (Metric) | 5.5 |
| Rake Angle | 15 degrees |
| Tolerance Class | M |
