Ceratizit
7.02663E7

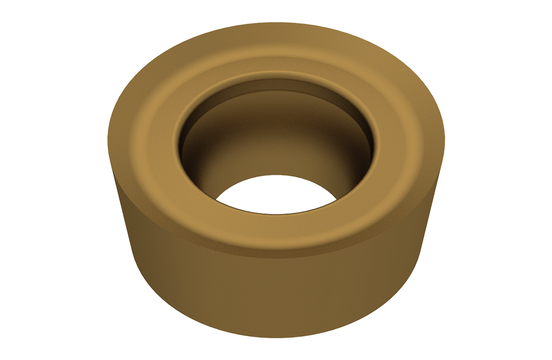

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 3.0 |
| Material | Carbide |
| Corner Radius (Inch) | 0.12 |
| Style | RCGT |
| Thickness (Inch) | 0.1 |
| Short Description | RCGT 0602 MO-AL CWN15 |
| Long Description | CARBIDE TURNING INSERT RCGT 0602 MO-AL CWN15 |
| Grade | CWN15 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6 mm |
| Inscribed Circle Diameter (Decimal) | 0.24 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -27.0 |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Tolerance Class | G |
