Ceratizit
7.0263758E9

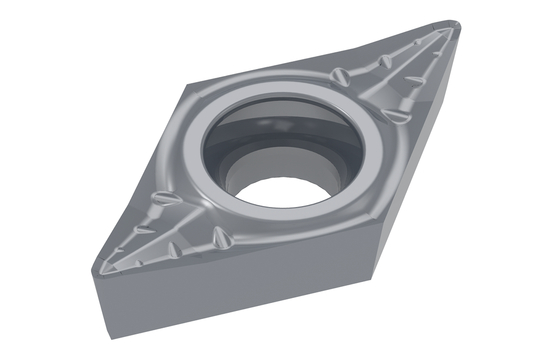

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | DCGT |
| Thickness (Inch) | 0.16 |
| Short Description | DCGT 11T304FR-25Q CTPX710 |
| Long Description | CARBIDE TURNING INSERT DCGT 11T304FR-25Q CTPX710 |
| Grade | CTPX710 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.46 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 11.6 |
| Direction Of Hand | Right |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -25Q |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Rake Angle | 20 degrees |
| Tolerance Class | G |
