Ceratizit
7.0260306E7

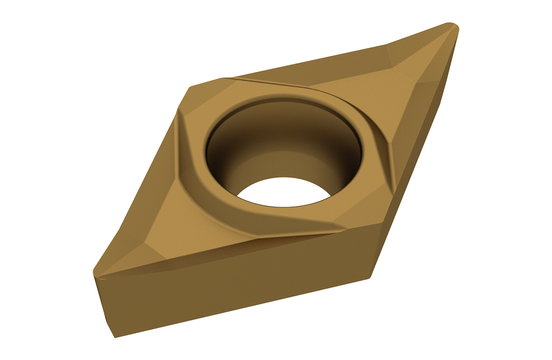

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | DCGT |
| Thickness (Inch) | 0.16 |
| Short Description | DCGT 11T304FN-27 CWN15 |
| Long Description | CARBIDE TURNING INSERT DCGT 11T304FN-27 CWN15 |
| Grade | CWN15 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.46 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -27.0 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Tolerance Class | G |
