Ceratizit
7.0260104E7

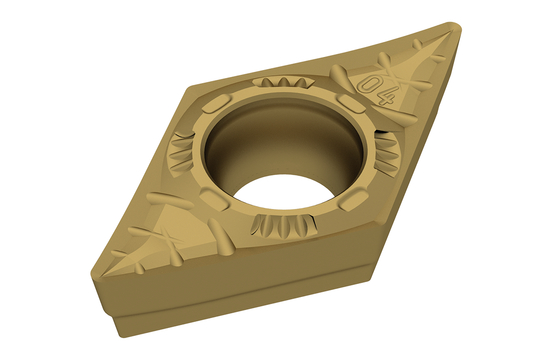

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DCXT |
| Thickness (Inch) | 0.16 |
| Short Description | DCXT 11T302-LMR H20X+PC0012 |
| Long Description | CARBIDE TURNING INSERT DCXT 11T302-LMR H20X+PC0012 |
| Grade | CWN2120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.46 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -M81 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Rake Angle | 20 degrees |
| Tolerance Class | X |
