Ceratizit
7.0241602E9

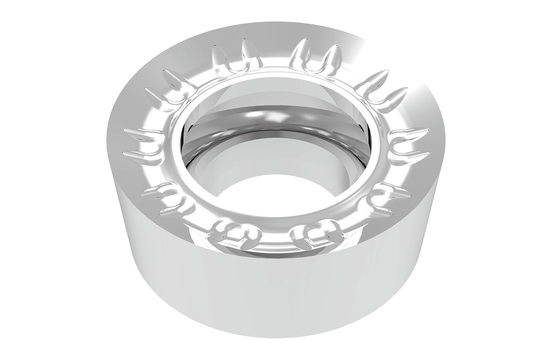

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 4.0 |
| Material | Carbide |
| Corner Radius (Inch) | 0.16 |
| Style | RCGT |
| Thickness (Inch) | 0.13 |
| Short Description | RCGT 0803MOFN-25P H210T |
| Long Description | CARBIDE TURNING INSERT RCGT 0803MOFN-25P H210T |
| Grade | H210T |
| Unit Of Measure | Imperial |
| Inscribed Circle Diameter | 0.32 Inch |
| Inscribed Circle Diameter (Metric) | 8.0 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -25P |
| Screw Hole Diameter (Decimal) | 0.14 |
| Screw Hole Diameter (Metric) | 3.4 |
| Tolerance Class | G |
