Ceratizit
7.01936E7

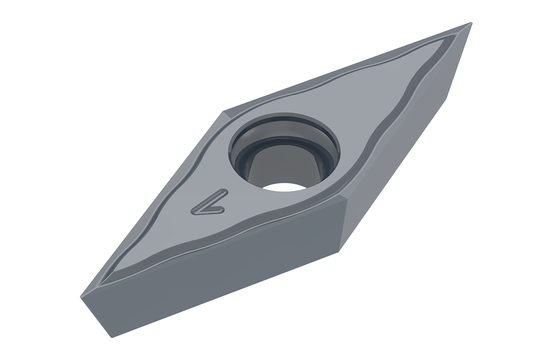

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Material | Carbide |
| Included Angle | 35 degrees |
| Style | VCGT |
| Thickness (Inch) | 0.13 |
| Short Description | VCGT 110300FN-F23 CTP2120 |
| Long Description | CARBIDE TURNING INSERT VCGT 110300FN-F23 CTP2120 |
| Grade | CTP2120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.10 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.44 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -F23 |
| Screw Hole Diameter (Decimal) | 0.12 |
| Screw Hole Diameter (Metric) | 2.9 |
| Rake Angle | 9 degrees |
| Tolerance Class | G |
