Ceratizit
7.0191604E7

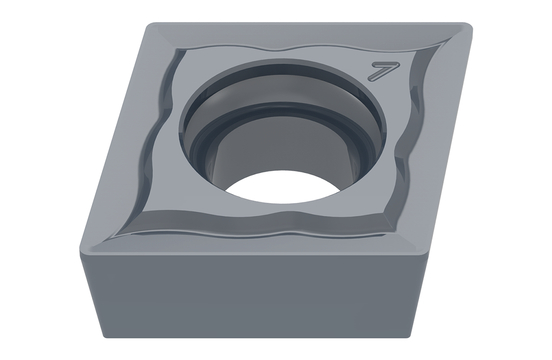

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | CCGT |
| Thickness (Inch) | 0.16 |
| Short Description | CCGT 09T300FN-F23 CTP2120 |
| Long Description | CARBIDE TURNING INSERT CCGT 09T300FN-F23 CTP2120 |
| Grade | CTP2120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 9.70 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.39 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -F23 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Rake Angle | 9 degrees |
| Tolerance Class | G |
