Ceratizit
7.0167604E7

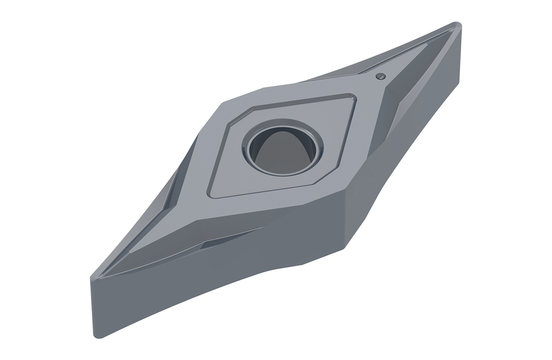

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VNGP |
| Thickness (Inch) | 0.19 |
| Short Description | VNGP 160404FN-F32 CTP2120 |
| Long Description | CARBIDE TURNING INSERT VNGP 160404FN-F32 CTP2120 |
| Grade | CTP2120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.66 |
| Direction Of Hand | Neutral |
| Chip Breaker | -F32 |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Rake Angle | 10.80 degrees |
| Tolerance Class | G |
