Ceratizit
7.0118608E7

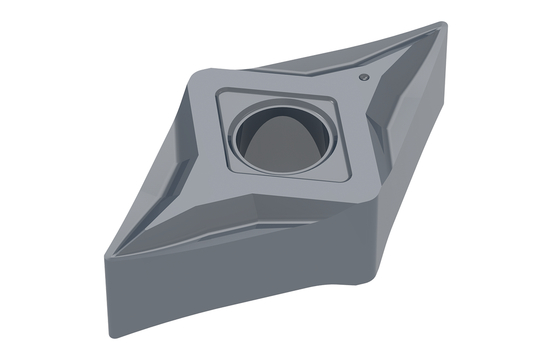

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DNGP |
| Thickness (Inch) | 0.19 |
| Short Description | DNGP 150408FN-F32 CTP2120 |
| Long Description | CARBIDE TURNING INSERT DNGP 150408FN-F32 CTP2120 |
| Grade | CTP2120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 15.50 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.61 |
| Direction Of Hand | Neutral |
| Chip Breaker | -F32 |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Rake Angle | 10.80 degrees |
| Tolerance Class | G |
