Ceratizit
7.0114546E7

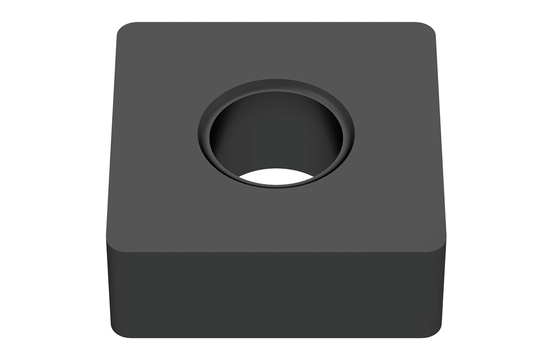

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | SNMA |
| Thickness (Inch) | 0.25 |
| Short Description | SNMA 190616EN CTCK120 |
| Long Description | CARBIDE TURNING INSERT SNMA 190616EN CTCK120 |
| Grade | CTCK120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 19.05 mm |
| Inscribed Circle Diameter | 19.05 mm |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Cutting Edge Length (Decimal) | 0.75 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.32 |
| Screw Hole Diameter (Metric) | 7.94 |
| Tolerance Class | M |
