Ceratizit
7.0114522E7

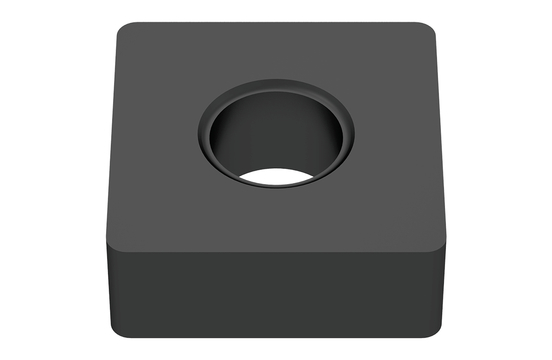

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | SNMA |
| Thickness (Inch) | 0.19 |
| Short Description | SNMA 120416EN CTCK120 |
| Long Description | CARBIDE TURNING INSERT SNMA 120416EN CTCK120 |
| Grade | CTCK120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.70 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.5 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Tolerance Class | M |
