Ceratizit
7.0100056E7

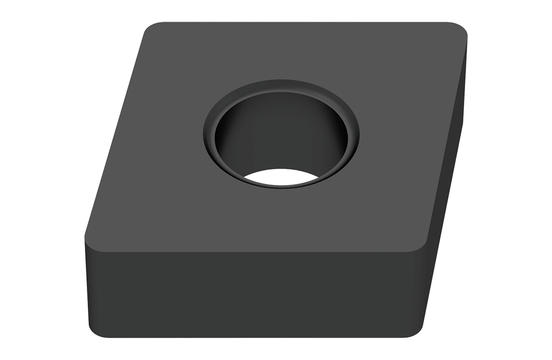

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNMA |
| Thickness (Inch) | 0.25 |
| Short Description | CNMA 190612EN CTCK110 |
| Long Description | CARBIDE TURNING INSERT CNMA 190612EN CTCK110 |
| Grade | CTCK110 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 19.30 mm |
| Inscribed Circle Diameter | 19.05 mm |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Cutting Edge Length (Decimal) | 0.76 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.32 |
| Screw Hole Diameter (Metric) | 7.94 |
| Tolerance Class | M |
