Ceratizit
5.40311E7

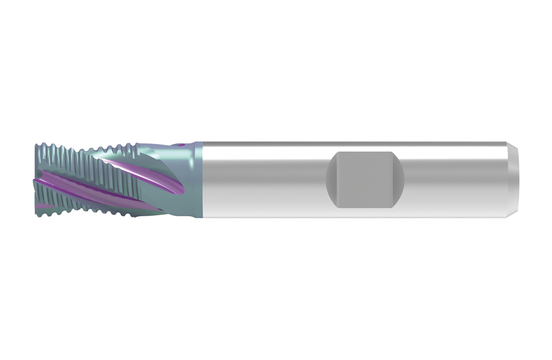

HSS-PM ROUGHING END MILL
Specifications
| Length Of Cut (Metric) | 13.0 |
|---|---|
| Overall Length (Inch) | 2.48 |
| Overall Length (Metric) | 63.0 |
| Material | Powder Steel |
| Coating/Finish | TI100PRO |
| Diameter (Metric) | 10.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.4 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 3.7 |
| Helix Angle | 30 degrees |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | K12 |
| Head Length (Decimal) | 0.83 |
| Head Length (Metric) | 21.0 |
| Length Type | Extra Short |
| Length (Decimal) | 3.7 |
| Width (Decimal) | 0.55 |
| Height (Decimal) | 0.55 |
| Neck Diameter (Metric) | 9.5 |
| Protruding Length (Decimal) | 0.91 |
| Protruding Length (Metric) | 23.0 |
| Shank Length (Decimal) | 1.66 |
| Shank Length (Metric) | 42.0 |
| Corner Chamfer Width (Decimal) | 0.02 |
| Corner Chamfer Width (Metric) | 0.45 |
| Depth of Cut Maximum (Decimal) | 0.52 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 4.0 |
| Flute Helix Angle | 30 degrees |
| Rake Angle Axial | 10 degrees |
