Ceratizit
5.403118E7

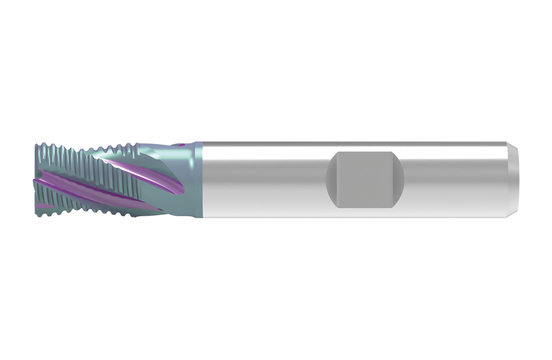

HSS-PM ROUGHING END MILL
Specifications
| Length Of Cut (Metric) | 19.0 |
|---|---|
| Overall Length (Inch) | 3.11 |
| Overall Length (Metric) | 79.0 |
| Material | Powder Steel |
| Coating/Finish | TI100PRO |
| Diameter (Metric) | 18.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.71 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 4.33 |
| Helix Angle | 30 degrees |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | K12 |
| Head Length (Decimal) | 1.15 |
| Head Length (Metric) | 29.0 |
| Length Type | Extra Short |
| Length (Decimal) | 4.33 |
| Width (Decimal) | 0.91 |
| Height (Decimal) | 0.91 |
| Neck Diameter (Metric) | 15.0 |
| Protruding Length (Decimal) | 1.22 |
| Protruding Length (Metric) | 31.0 |
| Shank Length (Decimal) | 1.97 |
| Shank Length (Metric) | 50.0 |
| Corner Chamfer Width (Decimal) | 0.03 |
| Corner Chamfer Width (Metric) | 0.7 |
| Depth of Cut Maximum (Decimal) | 0.75 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 4.0 |
| Flute Helix Angle | 30 degrees |
| Rake Angle Axial | 10 degrees |
