Ceratizit
5.22252E7

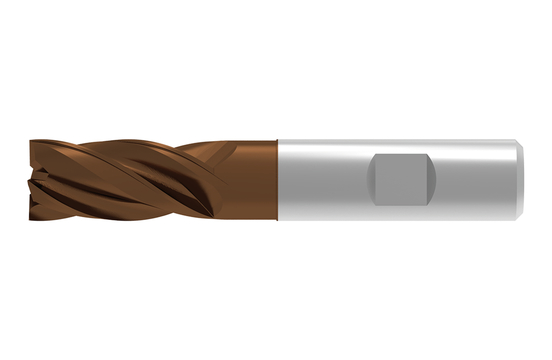

HPC CARBIDE END MILL WITHOUT EDGE BREAK
Specifications
| Length Of Cut (Metric) | 38.0 |
|---|---|
| Overall Length (Inch) | 4.1 |
| Overall Length (Metric) | 104.0 |
| Material | VHM |
| Coating/Finish | APX72S |
| Diameter (Metric) | 20.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.79 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 4.53 |
| Helix Angle | 28 - 36 degrees |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Head Length (Decimal) | 2.13 |
| Head Length (Metric) | 54.0 |
| Length Type | Long |
| Length (Decimal) | 4.53 |
| Width (Decimal) | 1.1 |
| Height (Decimal) | 1.1 |
| Neck Diameter (Metric) | 19.5 |
| Protruding Length (Decimal) | 2.13 |
| Protruding Length (Metric) | 54.0 |
| Shank Length (Decimal) | 1.97 |
| Shank Length (Metric) | 50.0 |
| Depth of Cut Maximum (Decimal) | 1.5 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 4.0 |
| Flute Helix Angle | 28 - 36 degrees |
| Rake Angle Axial | 10 degrees |
