Ceratizit
5.22251E7

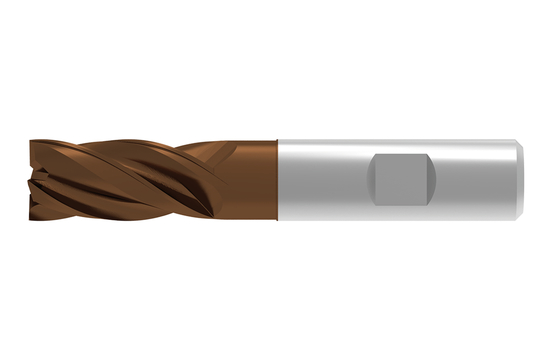

HPC CARBIDE END MILL WITHOUT EDGE BREAK
Specifications
| Length Of Cut (Metric) | 22.0 |
|---|---|
| Overall Length (Inch) | 2.84 |
| Overall Length (Metric) | 72.0 |
| Material | VHM |
| Coating/Finish | APX72S |
| Diameter (Metric) | 10.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.4 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 3.27 |
| Helix Angle | 28 - 36 degrees |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Head Length (Decimal) | 1.26 |
| Head Length (Metric) | 32.0 |
| Length Type | Long |
| Length (Decimal) | 3.27 |
| Width (Decimal) | 0.71 |
| Height (Decimal) | 0.71 |
| Neck Diameter (Metric) | 9.5 |
| Protruding Length (Decimal) | 1.26 |
| Protruding Length (Metric) | 32.0 |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40.0 |
| Depth of Cut Maximum (Decimal) | 0.87 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 4.0 |
| Flute Helix Angle | 28 - 36 degrees |
| Rake Angle Axial | 10 degrees |
