Ceratizit
5.222508E7

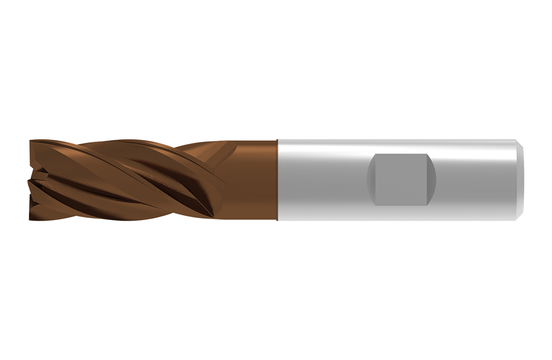

HPC CARBIDE END MILL WITHOUT EDGE BREAK
Specifications
| Length Of Cut (Metric) | 19.0 |
|---|---|
| Overall Length (Inch) | 2.48 |
| Overall Length (Metric) | 63.0 |
| Material | VHM |
| Coating/Finish | APX72S |
| Diameter (Metric) | 8.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.32 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 2.83 |
| Helix Angle | 28 - 36 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Head Length (Decimal) | 1.07 |
| Head Length (Metric) | 27.0 |
| Length Type | Long |
| Length (Decimal) | 2.83 |
| Width (Decimal) | 0.51 |
| Height (Decimal) | 0.51 |
| Neck Diameter (Metric) | 7.5 |
| Protruding Length (Decimal) | 1.07 |
| Protruding Length (Metric) | 27.0 |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36.0 |
| Depth of Cut Maximum (Decimal) | 0.75 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 4.0 |
| Flute Helix Angle | 28 - 36 degrees |
| Rake Angle Axial | 10 degrees |
