Ceratizit
5.210906E7

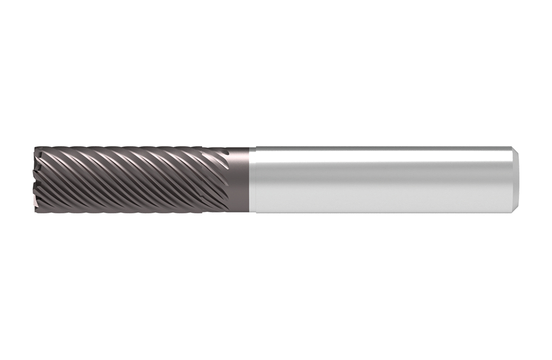

SOLID CARBIDE FINE TOOTH END MILL
Specifications
| Length Of Cut (Metric) | 16.0 |
|---|---|
| Overall Length (Inch) | 2.29 |
| Overall Length (Metric) | 58.0 |
| Material | VHM |
| Coating/Finish | TI1000 |
| Diameter (Metric) | 6.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.24 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 2.56 |
| Helix Angle | 50 degrees |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | E8 |
| Head Length (Decimal) | 1.03 |
| Head Length (Metric) | 26.0 |
| Length Type | Long |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Height (Decimal) | 0.51 |
| Neck Diameter (Metric) | 5.8 |
| Protruding Length (Decimal) | 1.03 |
| Protruding Length (Metric) | 26.0 |
| Shank Length (Decimal) | 1.26 |
| Shank Length (Metric) | 32.0 |
| Depth of Cut Maximum (Decimal) | 0.63 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 8.0 |
| Flute Helix Angle | 50 degrees |
| Rake Angle Axial | 10 degrees |
