Ceratizit
1.028526E7

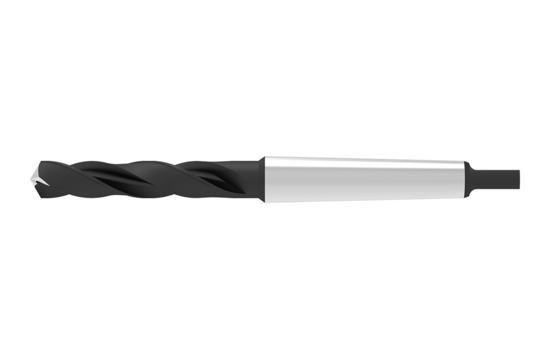

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 25.0 |
|---|---|
| Overall Length (Inch) | 8.86 |
| Overall Length (Metric) | 225.0 |
| Material | HSS-E |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.99 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 1.18 |
| Width (Decimal) | 1.18 |
| Short Description | WT.26,00.R.3D.WN.MK4 VAP |
| Long Description | HSSE TWIST DRILL WT.26,00.R.3D.WN.MK4 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 9.09 |
| Morse Taper Adapter Size | 3.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 4.1 |
| length chip flute (Metric) | 104.0 |
