Ceratizit
1.028516E7

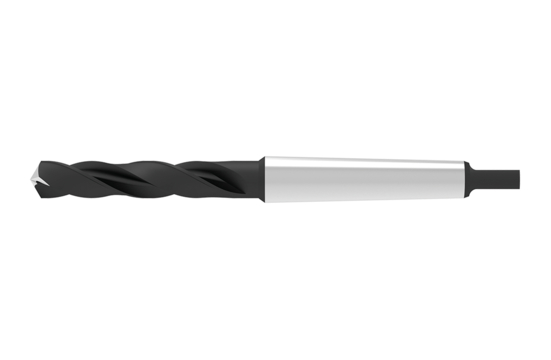

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 15.5 |
|---|---|
| Overall Length (Inch) | 6.93 |
| Overall Length (Metric) | 176.0 |
| Material | HSS-E |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.61 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.87 |
| Width (Decimal) | 0.87 |
| Short Description | WT.16,00.R.3D.WN.MK2 VAP |
| Long Description | HSSE TWIST DRILL WT.16,00.R.3D.WN.MK2 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 7.17 |
| Morse Taper Adapter Size | 2.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 3.08 |
| length chip flute (Metric) | 78.0 |
