Ceratizit
1.0280225E7

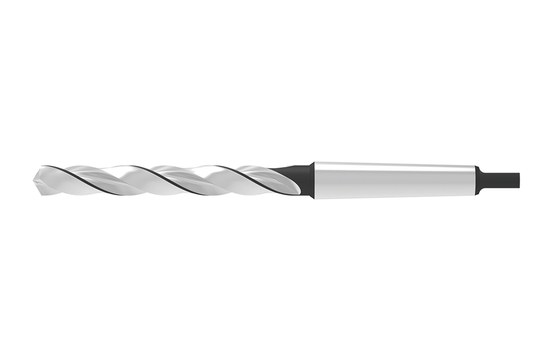

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 22.0 |
|---|---|
| Overall Length (Inch) | 9.77 |
| Overall Length (Metric) | 248.0 |
| Material | HSS-E |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.87 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.98 |
| Width (Decimal) | 0.98 |
| Short Description | WTL.22,50.R.5D.DIN345.MK2 VAP |
| Long Description | HSSE TWIST DRILL WTL.22,50.R.5D.DIN345.MK2 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 10.0 |
| Morse Taper Adapter Size | 2.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 5.91 |
| length chip flute (Metric) | 150.0 |
