Ceratizit
1.0280105E7

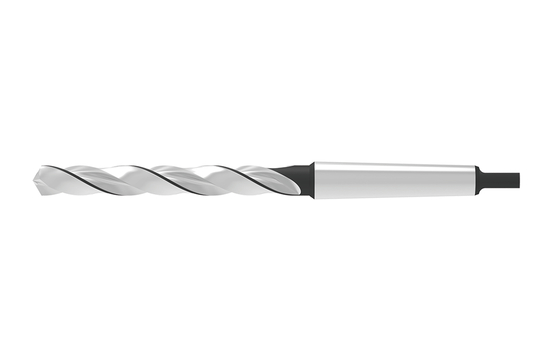

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 10.2 |
|---|---|
| Overall Length (Inch) | 6.62 |
| Overall Length (Metric) | 168.0 |
| Material | HSS-E |
| Coating/Finish | Bevel Nitrated |
| Diameter (Inch) | 0.41 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.71 |
| Width (Decimal) | 0.71 |
| Short Description | WTL.10,50.R.5D.DIN345.MK1 F.NIT |
| Long Description | HSSE TWIST DRILL WTL.10,50.R.5D.DIN345.MK1 F.NIT |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 6.85 |
| Morse Taper Adapter Size | 1.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 3.43 |
| length chip flute (Metric) | 87.0 |
