Ceratizit
1.026555E7

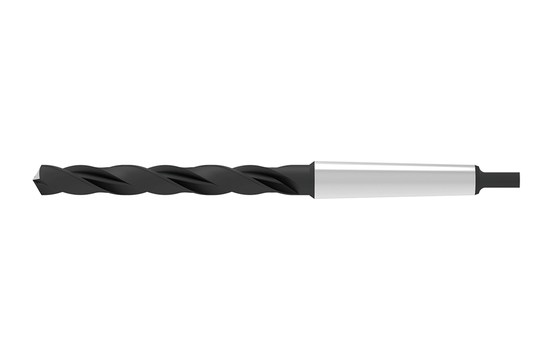

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 54.0 |
|---|---|
| Overall Length (Inch) | 16.42 |
| Overall Length (Metric) | 417.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 2.13 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 2.4 |
| Width (Decimal) | 2.4 |
| Short Description | N.55,00.R.5D.DIN345.MK5 VAP |
| Long Description | HSS TWIST DRILL N.55,00.R.5D.DIN345.MK5 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 16.65 |
| Morse Taper Adapter Size | 5.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 9.06 |
| length chip flute (Metric) | 230.0 |
