Ceratizit
1.026546E7

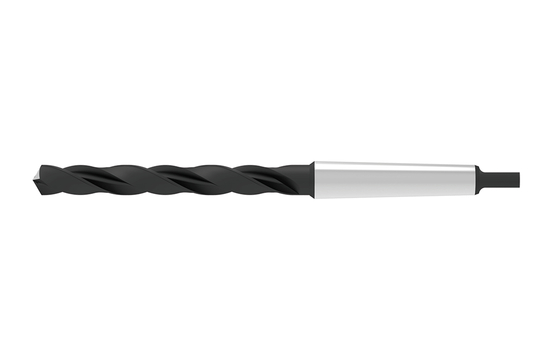

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 45.0 |
|---|---|
| Overall Length (Inch) | 14.14 |
| Overall Length (Metric) | 359.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 1.78 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 2.01 |
| Width (Decimal) | 2.01 |
| Short Description | N.46,00.R.5D.DIN345.MK4 VAP |
| Long Description | HSS TWIST DRILL N.46,00.R.5D.DIN345.MK4 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 14.37 |
| Morse Taper Adapter Size | 4.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 8.27 |
| length chip flute (Metric) | 210.0 |
