Ceratizit
1.026528E7

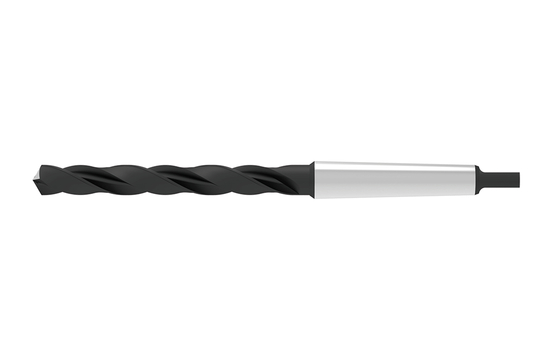

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 27.75 |
|---|---|
| Overall Length (Inch) | 11.46 |
| Overall Length (Metric) | 291.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 1.1 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 1.42 |
| Width (Decimal) | 1.42 |
| Short Description | N.28,00.R.5D.DIN345.MK3 VAP |
| Long Description | HSS TWIST DRILL N.28,00.R.5D.DIN345.MK3 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 11.69 |
| Morse Taper Adapter Size | 3.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 6.7 |
| length chip flute (Metric) | 170.0 |
