Ceratizit
1.026513E7

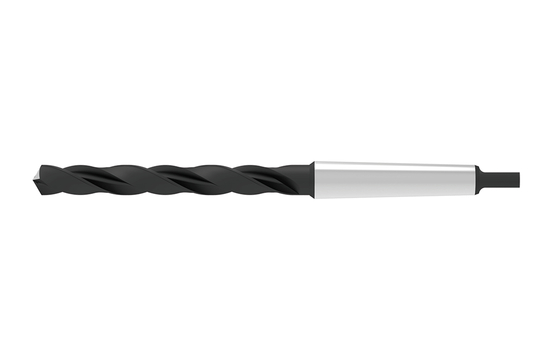

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 12.8 |
|---|---|
| Overall Length (Inch) | 7.17 |
| Overall Length (Metric) | 182.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.51 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.71 |
| Width (Decimal) | 0.71 |
| Short Description | N.13,00.R.5D.DIN345.MK1 VAP |
| Long Description | HSS TWIST DRILL N.13,00.R.5D.DIN345.MK1 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 7.4 |
| Morse Taper Adapter Size | 1.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 3.98 |
| length chip flute (Metric) | 101.0 |
