Ceratizit
1.0175085E7

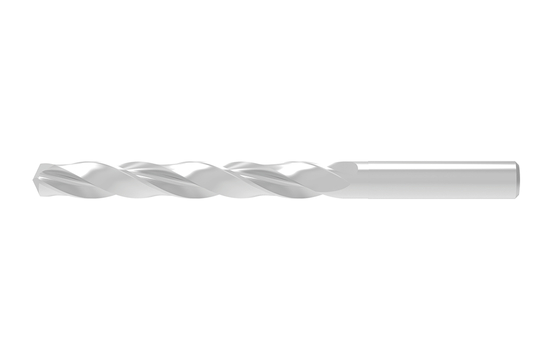

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 8.4 |
|---|---|
| Overall Length (Inch) | 4.61 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 117.0 |
| Material | HSS-E |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.34 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 42.0 |
| Width (Decimal) | 0.51 |
| Short Description | .A.8,50.R.5D.DIN338 |
| Long Description | HSSE TWIST DRILL .A.8,50.R.5D.DIN338 |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.34 |
| Connection Diameter (Metric) | 8.4 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 4.84 |
| Protruding Length (Decimal) | 3.0 |
| Protruding Length (Metric) | 76.0 |
| Shank Length (Decimal) | 1.66 |
| Usable Length (Decimal) | 1.66 |
| Usable Length (Metric) | 42.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 2.96 |
| length chip flute (Metric) | 75.0 |
