Ceratizit
1.017501E7

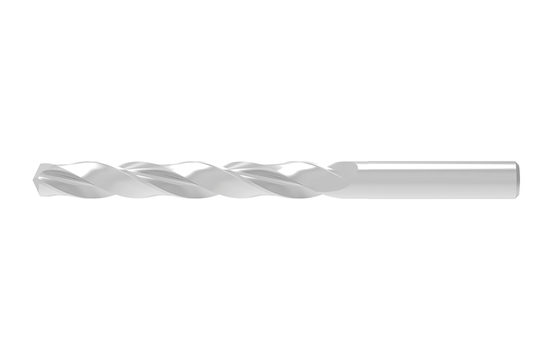

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 8.73 |
|---|---|
| Type | Self Centering |
| Overall Length (Inch) | 4.93 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 125.0 |
| Material | HSS-E-PM |
| Coating/Finish | TiN |
| Diameter (Inch) | 11/32 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 44.0 |
| Width (Decimal) | 0.51 |
| Short Description | VA.1,00.R.5D.DIN338 |
| Long Description | HSSE TWIST DRILL VA.1,00.R.5D.DIN338 |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.35 |
| Connection Diameter (Metric) | 8.73 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 5.16 |
| Protruding Length (Decimal) | 3.23 |
| Protruding Length (Metric) | 82.0 |
| Shank Length (Decimal) | 1.74 |
| Usable Length (Decimal) | 1.72 |
| Usable Length (Metric) | 43.65 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 3.19 |
| length chip flute (Metric) | 81.0 |
