Ceratizit
1.016804E7

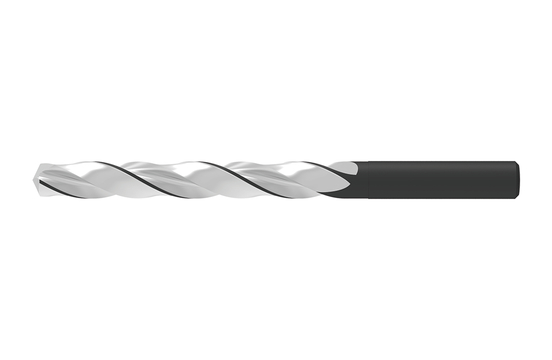

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 3.9 |
|---|---|
| Overall Length (Inch) | 2.96 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 75.0 |
| Material | HSS-E |
| Coating/Finish | Bevel Nitrated |
| Diameter (Inch) | 0.16 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 32.0 |
| Width (Decimal) | 0.51 |
| Short Description | WTL.4,00.R.5D.DIN338 F.NIT |
| Long Description | HSSE TWIST DRILL WTL.4,00.R.5D.DIN338 F.NIT |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.16 |
| Connection Diameter (Metric) | 3.9 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 3.19 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44.0 |
| Shank Length (Decimal) | 1.26 |
| Usable Length (Decimal) | 0.77 |
| Usable Length (Metric) | 19.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.7 |
| length chip flute (Metric) | 43.0 |
