Ceratizit
1.01520445E9

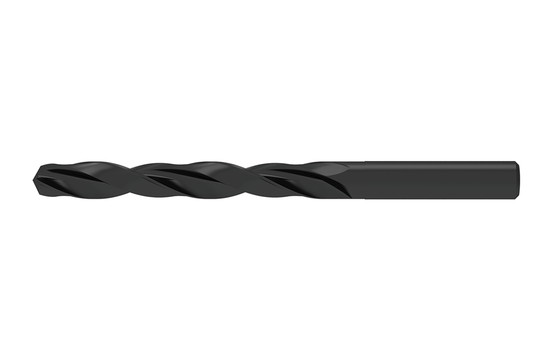

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 4.4 |
|---|---|
| Overall Length (Inch) | 3.15 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 80.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.18 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Imperial |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 33.0 |
| Width (Decimal) | 0.51 |
| Short Description | N.4,45.R.5D.DIN338 VAP |
| Long Description | HSS TWIST DRILL N.4,45.R.5D.DIN338 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.18 |
| Connection Diameter (Metric) | 4.4 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 3.39 |
| Protruding Length (Decimal) | 1.89 |
| Protruding Length (Metric) | 48.0 |
| Shank Length (Decimal) | 1.3 |
| Usable Length (Decimal) | 0.87 |
| Usable Length (Metric) | 22.0 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.85 |
| length chip flute (Metric) | 47.0 |
