Ceratizit
1.0152026E9

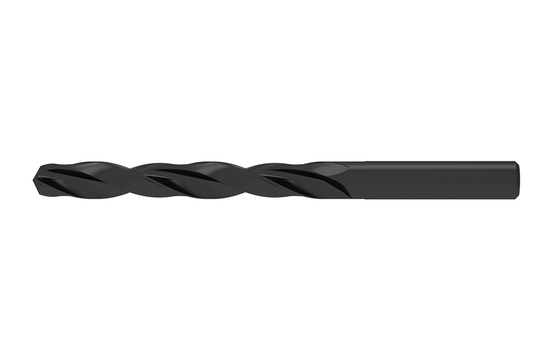

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 2.55 |
|---|---|
| Overall Length (Inch) | 2.25 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 57.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.1 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Imperial |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 27.0 |
| Width (Decimal) | 0.51 |
| Short Description | N.2,60.R.5D.DIN338 VAP |
| Long Description | HSS TWIST DRILL N.2,60.R.5D.DIN338 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.1 |
| Connection Diameter (Metric) | 2.55 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.48 |
| Protruding Length (Decimal) | 1.22 |
| Protruding Length (Metric) | 31.0 |
| Shank Length (Decimal) | 1.07 |
| Usable Length (Decimal) | 0.51 |
| Usable Length (Metric) | 12.75 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.19 |
| length chip flute (Metric) | 30.0 |
