Ceratizit
1.012211E7

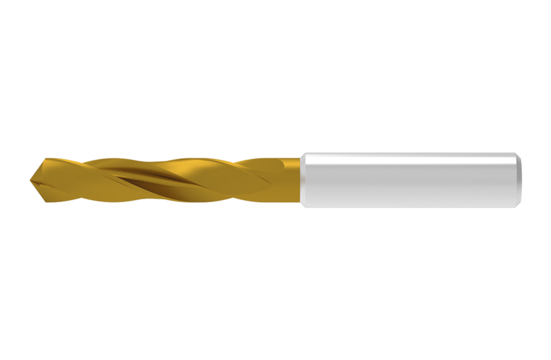

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 10.8 |
|---|---|
| Type | Self Centering |
| Overall Length (Inch) | 4.1 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 104.0 |
| Material | HSS-E |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.43 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.59 |
| Shank Length (Metric) | 45.0 |
| Width (Decimal) | 0.59 |
| Short Description | VX.11,00.R.3D.~DIN1897/1835A TIN |
| Long Description | HSSE TWIST DRILL VX.11,00.R.3D.~DIN1897/1835A TIN |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12.0 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 4.33 |
| Protruding Length (Decimal) | 2.33 |
| Protruding Length (Metric) | 59.0 |
| Shank Length (Decimal) | 1.78 |
| Usable Length (Decimal) | 1.28 |
| Usable Length (Metric) | 32.4 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.85 |
| length chip flute (Metric) | 47.0 |
