Ceratizit
1.011312E7

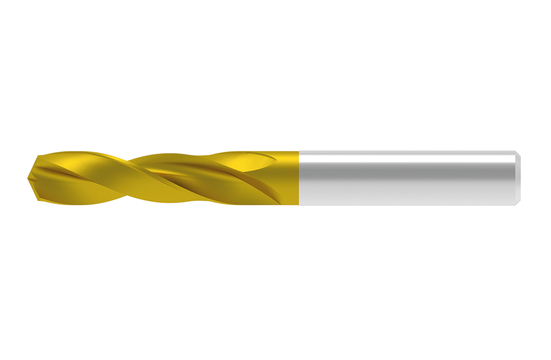

HSSE-PM TWIST DRILL
Specifications
| Diameter (Metric) | 11.5 |
|---|---|
| Type | Self Centering |
| Overall Length (Inch) | 3.74 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 95.0 |
| Material | HSS-E-PM |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.46 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.59 |
| Shank Length (Metric) | 48.0 |
| Width (Decimal) | 0.59 |
| Short Description | UNI-PM.12,00.R.3D.DIN1897 TIN |
| Long Description | HSSE-PM TWIST DRILL UNI-PM.12,00.R.3D.DIN1897 TIN |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.46 |
| Connection Diameter (Metric) | 11.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 3.98 |
| Protruding Length (Decimal) | 1.89 |
| Protruding Length (Metric) | 48.0 |
| Shank Length (Decimal) | 1.89 |
| Usable Length (Decimal) | 1.36 |
| Usable Length (Metric) | 34.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.85 |
| length chip flute (Metric) | 47.0 |
