Ceratizit
1.0113018E7

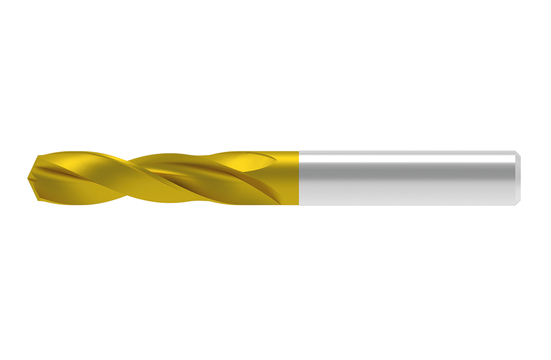

HSSE-PM TWIST DRILL
Specifications
| Diameter (Metric) | 1.7 |
|---|---|
| Type | Self Centering |
| Overall Length (Inch) | 1.34 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 34.0 |
| Material | HSS-E-PM |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.07 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 24.0 |
| Width (Decimal) | 0.51 |
| Short Description | UNI-PM.1,80.R.3D.DIN1897 TIN |
| Long Description | HSSE-PM TWIST DRILL UNI-PM.1,80.R.3D.DIN1897 TIN |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.07 |
| Connection Diameter (Metric) | 1.7 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.13 |
| Protruding Length (Decimal) | 0.44 |
| Protruding Length (Metric) | 11.0 |
| Shank Length (Decimal) | 0.95 |
| Usable Length (Decimal) | 0.21 |
| Usable Length (Metric) | 5.1 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.4 |
| length chip flute (Metric) | 10.0 |
