Ceratizit
1.0110177E7

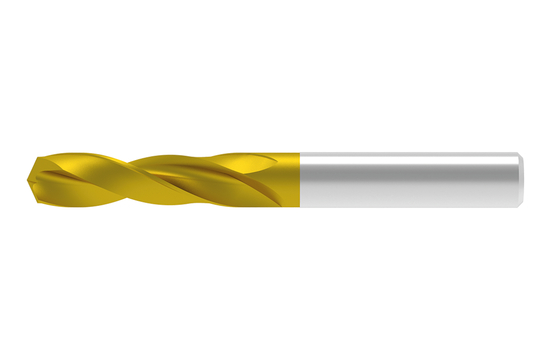

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 17.5 |
|---|---|
| Overall Length (Inch) | 4.85 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 123.0 |
| Material | HSS-E |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.69 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.87 |
| Shank Length (Metric) | 61.0 |
| Width (Decimal) | 0.87 |
| Short Description | WT.17,75.R.3D.DIN1897 TIN |
| Long Description | HSSE TWIST DRILL WT.17,75.R.3D.DIN1897 TIN |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.69 |
| Connection Diameter (Metric) | 17.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 5.08 |
| Protruding Length (Decimal) | 2.48 |
| Protruding Length (Metric) | 63.0 |
| Shank Length (Decimal) | 2.41 |
| Usable Length (Decimal) | 2.07 |
| Usable Length (Metric) | 52.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 2.45 |
| length chip flute (Metric) | 62.0 |
