Ceratizit
1.0109103E9

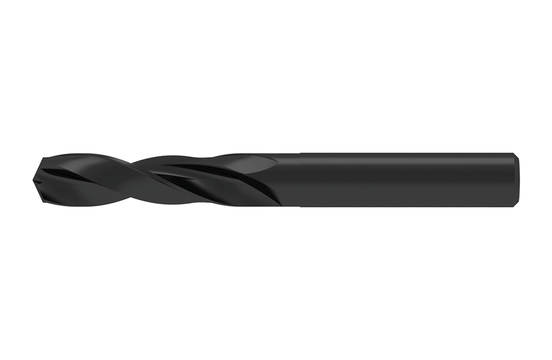

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 10.2 |
|---|---|
| Overall Length (Inch) | 3.51 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 89.0 |
| Material | HSS-E |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.41 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Imperial |
| Height (Decimal) | 0.59 |
| Shank Length (Metric) | 46.0 |
| Width (Decimal) | 0.59 |
| Short Description | WT.10,30.R.3D.DIN1897 VAP |
| Long Description | HSSE TWIST DRILL WT.10,30.R.3D.DIN1897 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.41 |
| Connection Diameter (Metric) | 10.2 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 3.74 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44.0 |
| Shank Length (Decimal) | 1.82 |
| Usable Length (Decimal) | 1.21 |
| Usable Length (Metric) | 30.6 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.7 |
| length chip flute (Metric) | 43.0 |
