Ceratizit
1.0106094E7

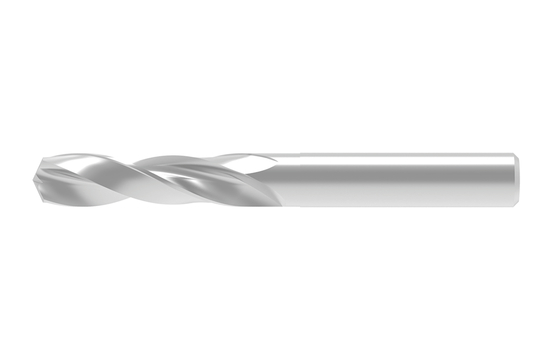

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 9.3 |
|---|---|
| Overall Length (Inch) | 3.31 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 84.0 |
| Material | HSS-E |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.37 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 44.0 |
| Width (Decimal) | 0.51 |
| Short Description | WNX.9,40.R.3D.DIN1897 |
| Long Description | HSSE TWIST DRILL WNX.9,40.R.3D.DIN1897 |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.37 |
| Connection Diameter (Metric) | 9.3 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 3.54 |
| Protruding Length (Decimal) | 1.62 |
| Protruding Length (Metric) | 41.0 |
| Shank Length (Decimal) | 1.74 |
| Usable Length (Decimal) | 1.1 |
| Usable Length (Metric) | 27.9 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.58 |
| length chip flute (Metric) | 40.0 |
