Ceratizit
1.0106036E7

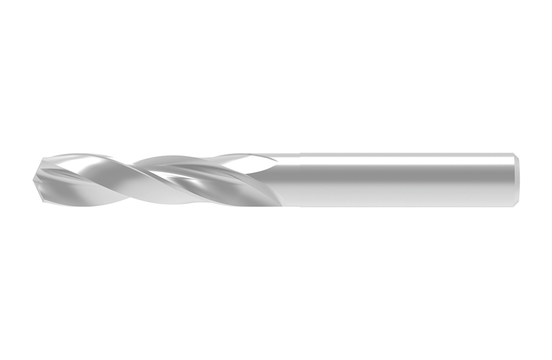

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 3.5 |
|---|---|
| Overall Length (Inch) | 2.05 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 52.0 |
| Material | HSS-E |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.14 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 32.0 |
| Width (Decimal) | 0.51 |
| Short Description | WNX.3,60.R.3D.DIN1897 |
| Long Description | HSSE TWIST DRILL WNX.3,60.R.3D.DIN1897 |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.14 |
| Connection Diameter (Metric) | 3.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.28 |
| Protruding Length (Decimal) | 0.83 |
| Protruding Length (Metric) | 21.0 |
| Shank Length (Decimal) | 1.26 |
| Usable Length (Decimal) | 0.42 |
| Usable Length (Metric) | 10.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.79 |
| length chip flute (Metric) | 20.0 |
