Ceratizit
1.01052E7

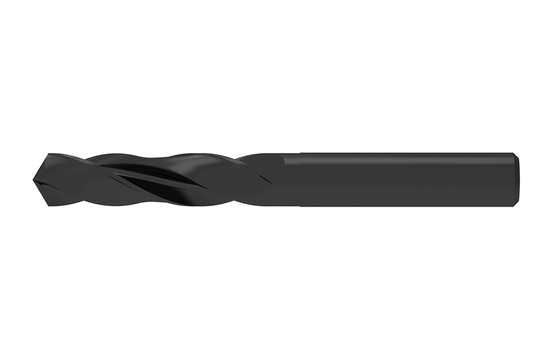

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 19.5 |
|---|---|
| Overall Length (Inch) | 5.16 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 131.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.77 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.94 |
| Shank Length (Metric) | 65.0 |
| Width (Decimal) | 0.94 |
| Short Description | N.20,00.R.3D.DIN1897 VAP |
| Long Description | HSS TWIST DRILL N.20,00.R.3D.DIN1897 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.77 |
| Connection Diameter (Metric) | 19.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 5.39 |
| Protruding Length (Decimal) | 2.64 |
| Protruding Length (Metric) | 67.0 |
| Shank Length (Decimal) | 2.56 |
| Usable Length (Decimal) | 2.31 |
| Usable Length (Metric) | 58.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 2.6 |
| length chip flute (Metric) | 66.0 |
