Ceratizit
1.010506E7

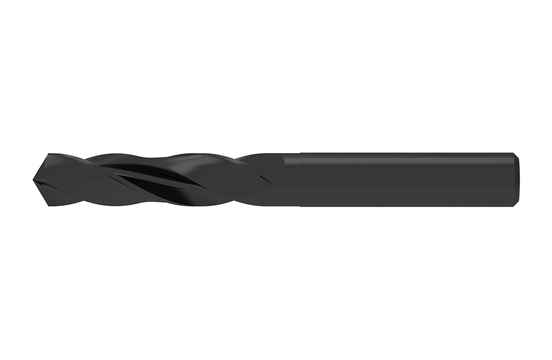

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 5.9 |
|---|---|
| Overall Length (Inch) | 2.6 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 66.0 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.24 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 38.0 |
| Width (Decimal) | 0.51 |
| Short Description | N.6,00.R.3D.DIN1897 VAP |
| Long Description | HSS TWIST DRILL N.6,00.R.3D.DIN1897 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 5.9 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.83 |
| Protruding Length (Decimal) | 1.15 |
| Protruding Length (Metric) | 29.0 |
| Shank Length (Decimal) | 1.5 |
| Usable Length (Decimal) | 0.7 |
| Usable Length (Metric) | 17.7 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.11 |
| length chip flute (Metric) | 28.0 |
