Ceratizit
1.0105006E7

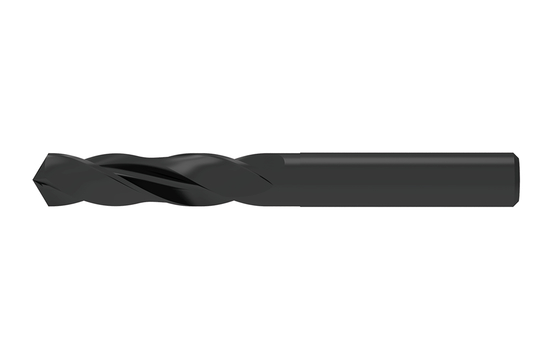

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 0.5 |
|---|---|
| Overall Length (Inch) | 0.79 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 20.0 |
| Material | HSS |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.02 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.04 |
| Shank Length (Metric) | 17.0 |
| Width (Decimal) | 1.57 |
| Short Description | N.0,60.R.3D.DIN1897 |
| Long Description | HSS TWIST DRILL N.0,60.R.3D.DIN1897 |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.02 |
| Connection Diameter (Metric) | 0.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.76 |
| Protruding Length (Decimal) | 0.16 |
| Protruding Length (Metric) | 4.0 |
| Shank Length (Decimal) | 0.67 |
| Usable Length (Decimal) | 0.06 |
| Usable Length (Metric) | 1.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.12 |
| length chip flute (Metric) | 3.0 |
