Ceratizit
1.0105004E7

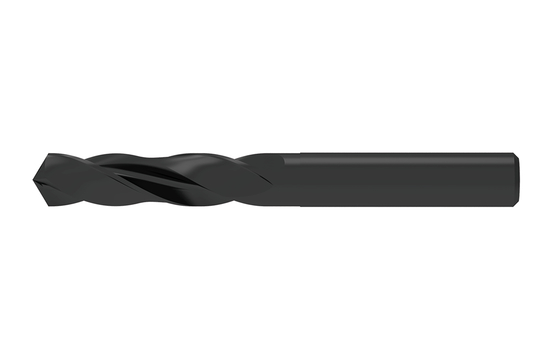

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 1.45 |
|---|---|
| Overall Length (Inch) | 0.99 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 25.0 |
| Material | HSS |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.06 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.35 |
| Shank Length (Metric) | 13.8 |
| Width (Decimal) | 1.61 |
| Short Description | N.0,40.R.3D.DIN1897 |
| Long Description | HSS TWIST DRILL N.0,40.R.3D.DIN1897 |
| Cutting Direction | Right |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.06 |
| Connection Diameter (Metric) | 1.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance (Decimal) | -0.01 |
| Diameter Tolerance (Metric) | -0.01 |
| Length (Decimal) | 2.2 |
| Protruding Length (Decimal) | 0.45 |
| Protruding Length (Metric) | 11.2 |
| Shank Length (Decimal) | 0.55 |
| Usable Length (Decimal) | 0.18 |
| Usable Length (Metric) | 4.35 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.38 |
| length chip flute (Metric) | 9.5 |
